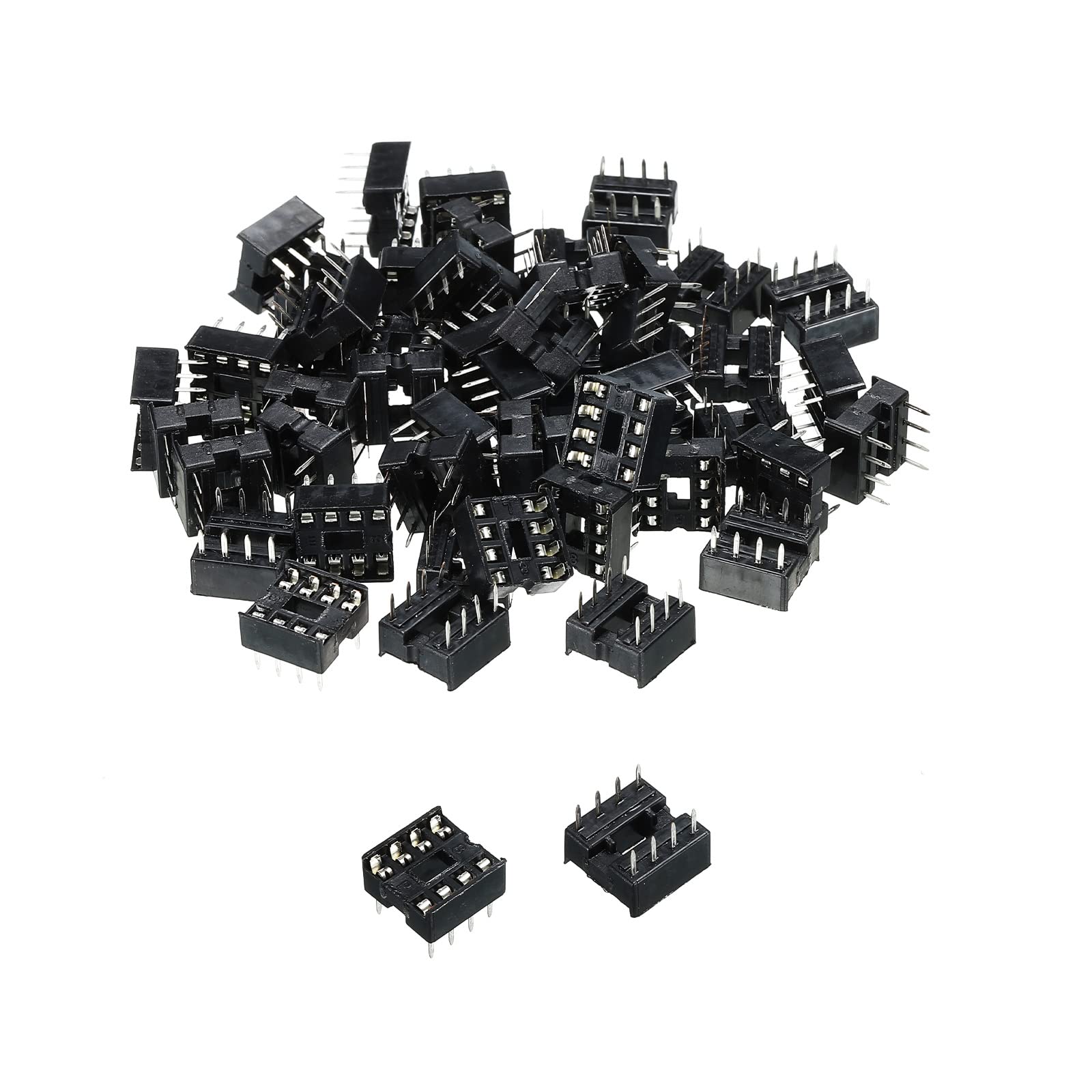

MECCANIXITY 50-Pack 8P 2.54mm Pitch DIP IC Chip Socket Adapter with Flat Pins for PCB Board - Perfect for Electronics Prototyping, DIY Projects, and Circuit Board Repairs
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
44163193
Description
Something else you need to know How to use it? When you need to replace or install the chip, just remove the connection between the IC socket and the chip. Advantages: The IC socket achieves the chip can be pulled and inserted directly without soldering to the PCB board. It has heat resistant and good pin stability and can withstand repeated assembly and disassembly without damaging the chip. Note: The spacing and line spacing of the connector holes must be the same as the spacing and line spacing of the chip pins.
Features
IC socket is in double rows and has flat straight pins. The IC socket is the carrier between the chip and the PCB circuit board, which are good electronic components for connecting PCB boards chip.

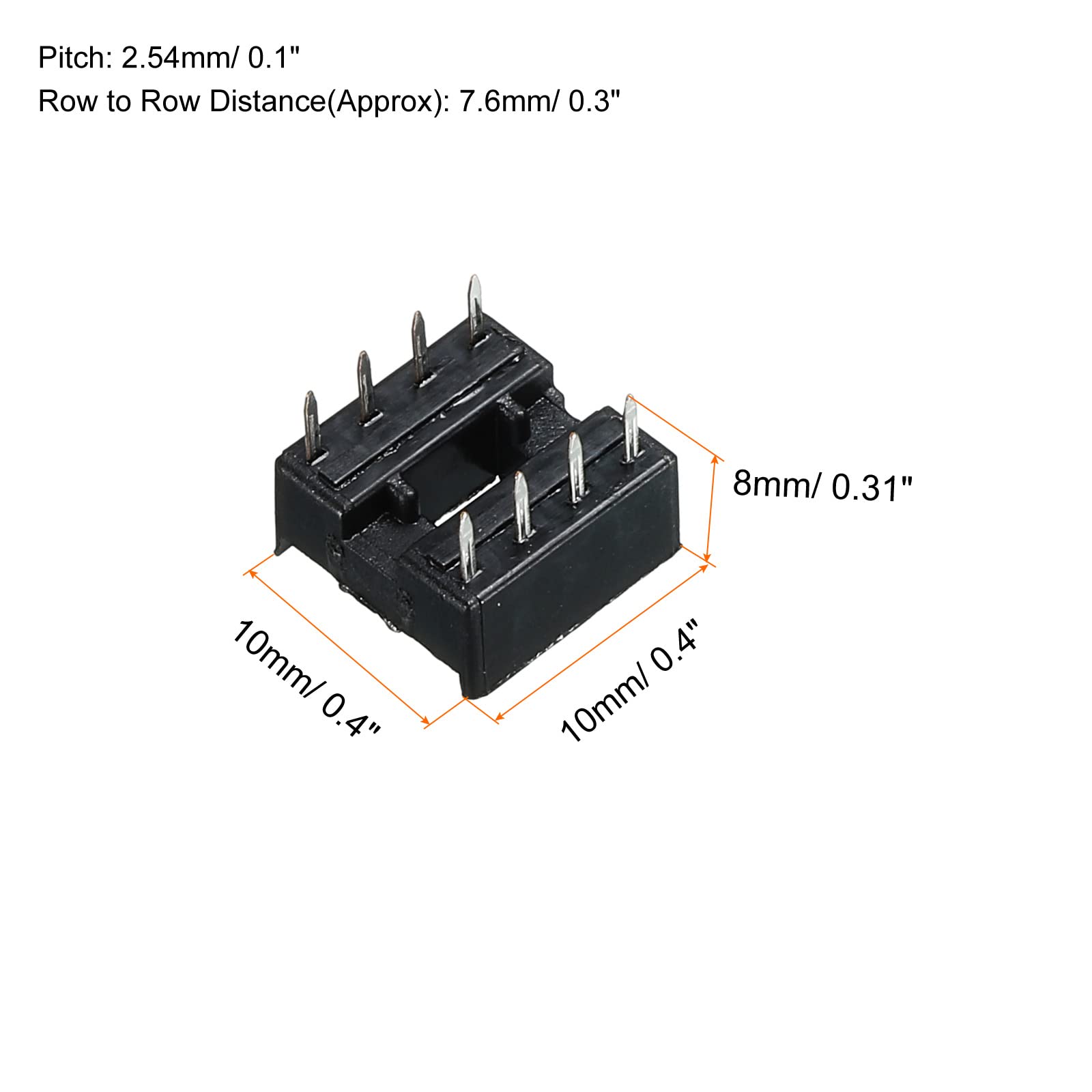

Material Plastic, Metal; Pitch 2.54mm/ 0.1"; Row to Row Distance(Approx) 7.6mm/ 0.3"; Size(LxWxH) 10x10x8mm/0.4x0.4x0.31 inch
The IC socket achieves the chip can be pulled and inserted directly without soldering to the PCB board. It has heat resistant and good pin stability and can withstand repeated assembly and disassembly without damaging the chip.
When you need to replace or install the chip, just remove the connection between the IC socket and the chip.

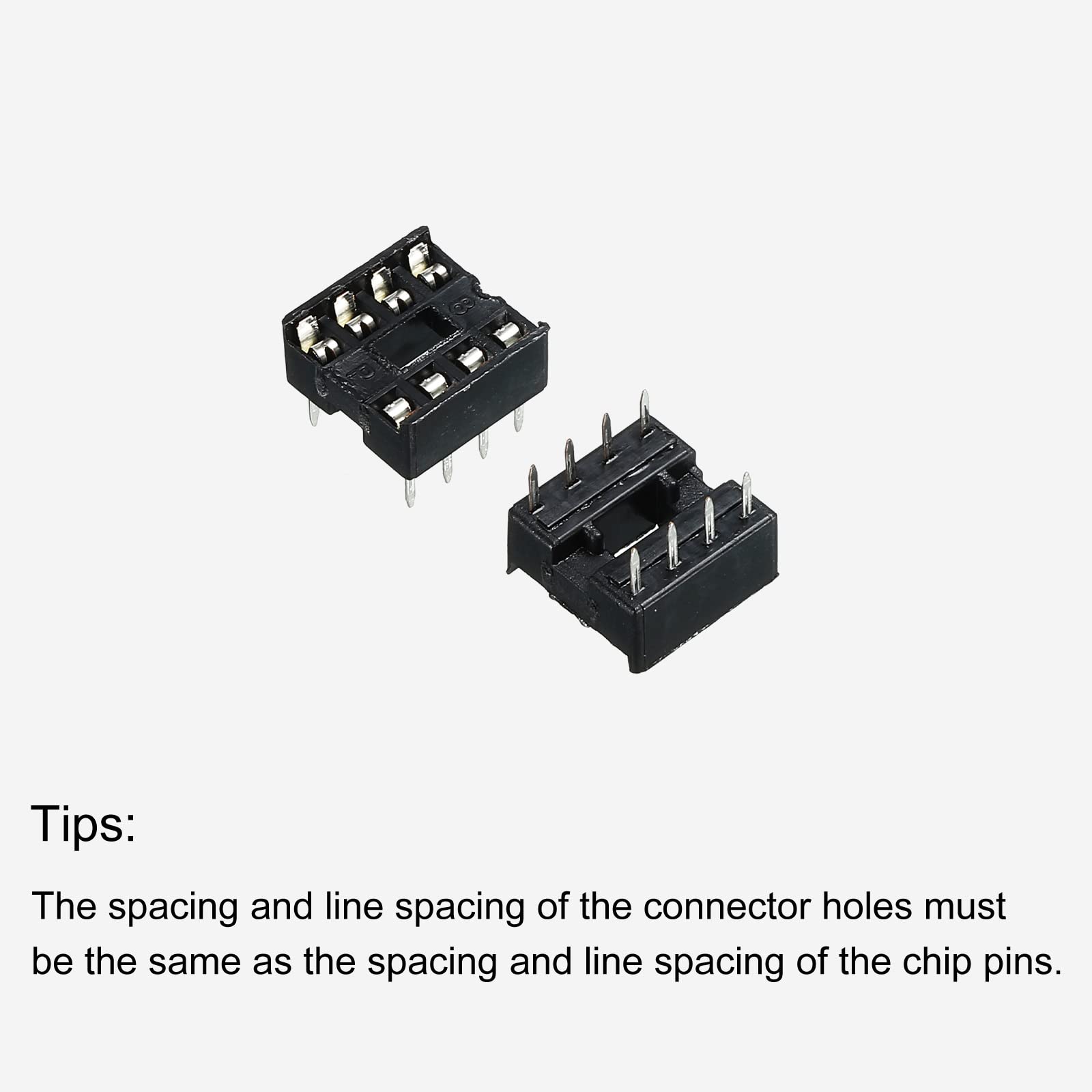

The spacing and line spacing of the connector holes must be the same as the spacing and line spacing of the chip pins.
