Waterproof 4 Pin Aviation Connector - SP13 Circular Male Female Plug & Panel Mount Socket (5A) for Outdoor Power, Lighting & Marine Applications
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
46354554
Description

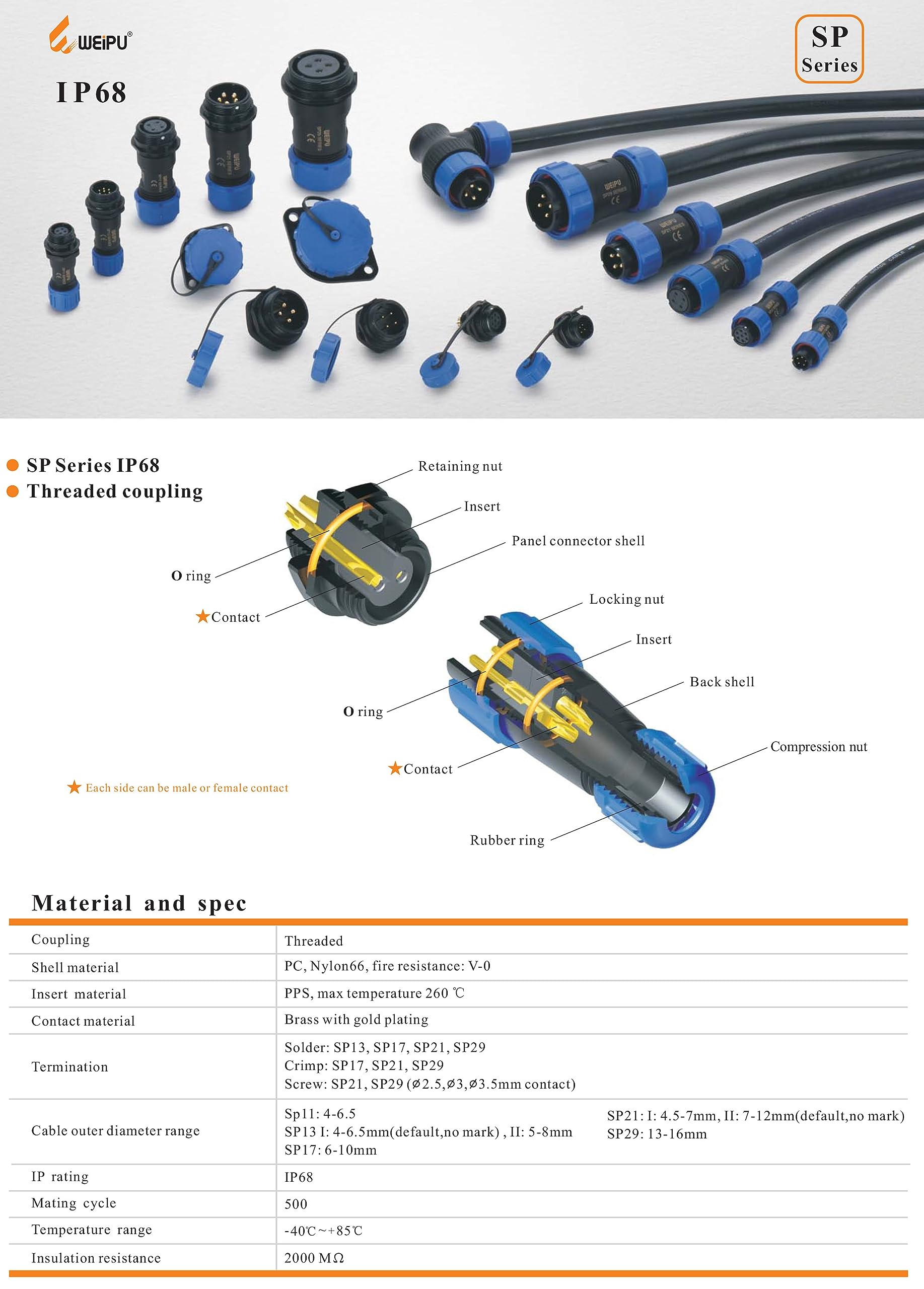

Specifications: WEIPU SP13:Panel Hole Cutout Diameter: 13mmCable Outer Diameter: 4mm-8mm Coupling Type: Threaded, secure and quick connection Shell Material: PPS. Corrosion resistance, oxidation resistance, long service lifeInsert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with gold plating Termination: Solder Mating Cycle: >500 times Temperature Range: -40~+85℃ Package Includes: 1 x Male cable plug 1 x Female socket panel rear-nut mount 1 x Dustproof CapFeatures: In the harsh environment the connector can provide safe and reliable connection. SP13 aviation connector is ideal for data and power distribution in area of dust-proof, indoor / outdoor applications, such as outdoor electrical tools, industrial power supply, automotive portable power, medical device, communications, automatic equipment, led lighting, LED panels, solar power station, outdoor security cameras, transformer, control box, machines equipment, packing machines and more
Features

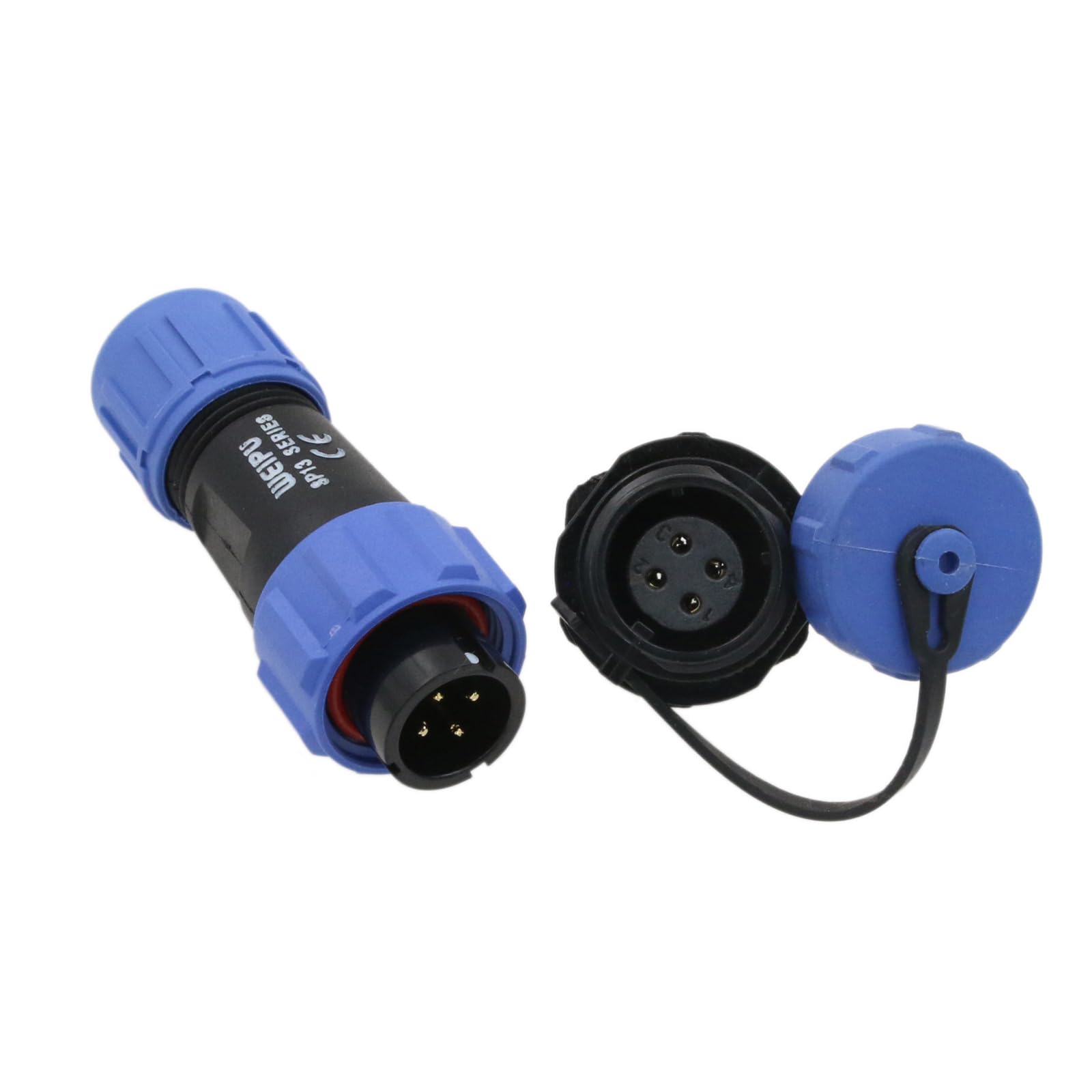

WEIPU SP13 4 pin aviation circular waterproof IP68 connector, male cable plug and female panel rear-mount socket, 13mm panel hole cutout diameter
[Contact Spec] Rated Voltage / Current AC 200V / 5A. Contact Diameter Φ1mm. Resistance 5mΩ. Wire Size 18-24 AWG or smaller than 0.75mm². Cable Outer Diameter Range 4mm-8mm
Power connector for portable power station, industrial machines, solar generator / panel, camper van, automotive, LED, marine boat, lighting system, indoor outdoor electrical equipment
Threaded coupling, solder termination type, durable plastic blue shell, gold-plated brass contact. Well made and good quality connector. Connector set includes plug, socket, and plastic cap
Reliable solid secure and quick connection. Easy cable assembly. Corrosion resistance, oxidation resistance, waterproof IP68, dust-proof, explosion-proof, deformation-proof, long service life. Heavy-duty connector for harsh industrial indoor outdoor environment
